Industrial Oven Control System PLC/HMI • PID • SCR/SSR • Logging
Industrial Oven Control Systems for Stable, Repeatable Production
ZonHoo designs and builds industrial oven control systems that keep your process on spec—temperature, time, airflow, and throughput—shift after shift. From PLC/HMI and PID control to SCR/SSR power regulation, alarms, and data logging, we deliver a control platform built for real production and engineering approval.
- Control Panel + Program built by the oven manufacturer (one responsibility, fewer risks)
- Recipe Management (ramp/soak, multi-step cycles, user access control)
- Traceability Options (event logs, batch reports, network connectivity as specified)
- Safety Interlocks (over-temp, airflow, door, fan, heater protection)
Quick Spec Inputs (for RFQ)
Share these and we will propose the control scope and deliverables.
- Temperature range & uniformity target
- Chamber size, zones (if any), and heater power
- Sensor type preference (TC / RTD)
- Recipe complexity (ramp/soak, holds, steps)
- Plant standards (voltage, approvals, I/O, comms)
Three Control Capabilities That Matter in Production
PLC + HMI Control Platform
Industrial-grade PLC logic with a clean HMI interface for operators. Recipe screens, alarms, status dashboards, and access control—built for fast training and stable execution.
PID + SCR/SSR Power Control
Closed-loop temperature control with heater power modulation for stable ramp/soak performance. Supports single or multi-zone control to match your chamber size and load profile.
Traceability & Data Logging
Event history, alarm records, and batch reports help you verify every run. Optional network connectivity supports production traceability and continuous improvement.
What the Oven Control System Manages
- Temperature control (setpoint tracking, ramp/soak cycles, multi-step recipes)
- Heater power regulation (SCR/SSR control, staged heating, protection logic)
- Airflow sequencing (fan status, airflow proving, purge timing when required)
- Safety interlocks (over-temp, door, fan, heater protection, E-stop logic)
- Operator workflow (start/stop, recipe selection, user roles, alarm guidance)
- Production documentation (logs, run history, optional batch reports)

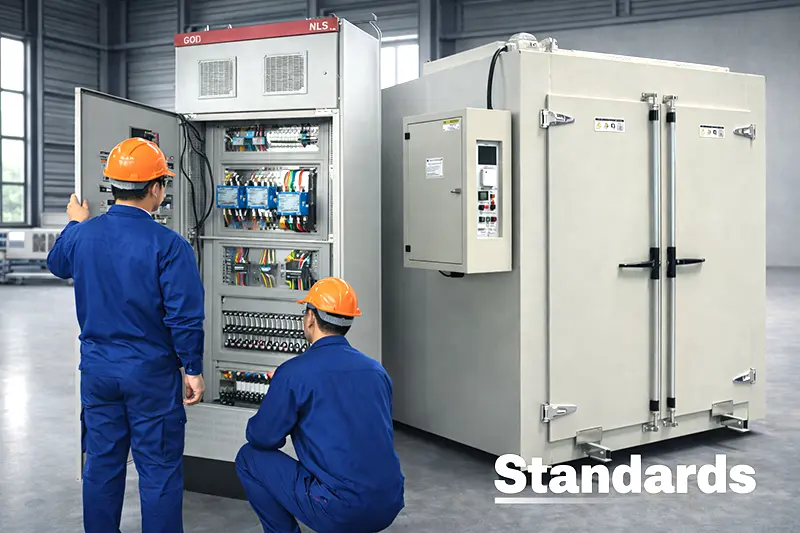

Control Panel Architecture (Manufacturer-Built)
We build the control panel as part of the oven system—one engineering responsibility, fewer interface risks. The PLC runs sequencing and safety logic. The HMI presents a clear workflow for operators. Sensors feed real-time signals, while SCR/SSR modules regulate heater power for stable temperature control.
If you need line integration, we can provide standard communication options and clear documentation to align with your electrical standards and approval process.
Safety Interlocks Built into the Control Logic
Industrial oven safety is not a “feature list”—it is control logic. We implement structured interlocks to prevent unsafe states and protect heaters, fans, and loads.
- Over-temperature protection: alarm logic and safe shutdown sequencing
- Fan/heater dependency: heater enable only when airflow conditions are met (when required)
- Door and access logic: prevents incorrect operation during a running cycle
- Fault handling: clear alarm display, event recording, guided recovery steps (optional)
This section describes control logic scope only. Installation, commissioning, and long-term service are covered in separate Support pages to avoid keyword overlap.
Control System Feature Matrix
Use this as a scope alignment tool in RFQ review. Items marked “Options” are defined per project requirements and plant standards.
| Feature | Standard | Options | Why It Matters |
|---|---|---|---|
| Temperature control | PID control | Multi-zone control | Stable repeatability and uniformity for production loads |
| Recipes / cycles | Basic recipes | Ramp/soak, multi-step profiles | Consistent results across shifts and operators |
| Heater power control | SSR / staged heating | SCR phase-angle control | Better control for tight ramps and thermal stability |
| Safety logic | Over-temp alarm | Independent limiter, additional interlocks | Reduced risk, clearer approval and audits |
| Alarms & guidance | Alarm list | Alarm help text + troubleshooting steps | Faster recovery, less downtime |
| Data logging | Event history | Batch reports, export / network logging | Traceability and process verification |
| User access | Basic password | Roles / levels | Prevents unapproved parameter changes |
| Connectivity | Local operation | Modbus / Ethernet (as specified) | Line integration with MES/SCADA (if required) |
Engineering Deliverables for Review & Approval
- Electrical drawings (control panel layout, wiring diagrams as applicable)
- I/O list and sensor/heater mapping
- HMI screen set and recipe structure
- Alarm list and interlock logic summary
- Commissioning checklist (for factory test and site start-up alignment)
Integration-Ready for Production Lines
Many manufacturers require the industrial oven control system to align with plant standards. We can support agreed communication methods and documentation so your team can integrate the oven into the production workflow efficiently.
Typical requests: run/stop status, alarm output, recipe ID, temperature PV/SV, cycle complete, and data export alignment.
Need commissioning alignment? See Install & Engineering. For long-term service planning, visit Maintenance & Parts.
FAQ
What control platform do you use for industrial ovens?
We typically build the industrial oven control system around a PLC + HMI architecture for stable sequencing and clear operator workflow. The exact configuration is selected based on your process complexity, zone count, and plant standards.
Do you support ramp/soak recipes and multi-step cycles?
Yes. We can provide multi-step temperature profiles (ramp/soak) with configurable holds, timers, and step transitions—ideal for curing, drying, heat treatment, and other thermal processing.
What is the difference between SSR and SCR power control?
SSR control is commonly used for staged or time-proportional heating. SCR control offers finer heater power modulation and can improve stability during tight ramps or sensitive processes. We recommend based on your heater type, temperature range, and process tolerance.
Can the control system log data for traceability?
Yes. The control system can record event history and alarms. For higher traceability needs, optional logging and batch reporting can be added based on your documentation requirements.
Can the oven control panel integrate with our production line?
We can support agreed signals and communication options for line integration. Share your required data points and interface standard during RFQ, and we will align the control scope accordingly.
Who owns responsibility if controls and oven are supplied together?
When the oven manufacturer builds the control panel as part of the system scope, responsibility is clearer: one engineering team, one set of drawings, one commissioning logic—reducing integration risk.
